Electric Panel & Hansung Dyeing Controller Program

Product

Electric Panel & Hansung Dyeing Controller Program

We independently manufacture electrical panels for dyeing machines, starting from panel box fabrication, followed by electrical panel wiring, and finally integrating the dyeing program controller using the Hansung Dyeing Controller.

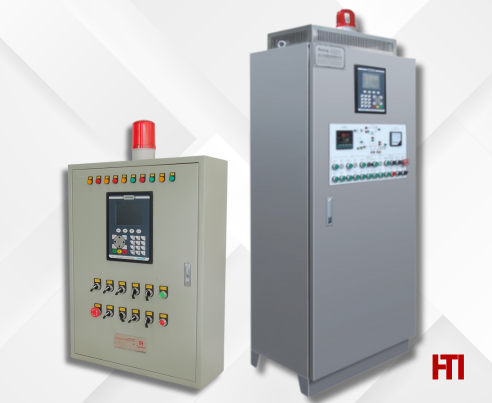

1. Electric Panel

We offer fully customizable electrical panels designed to meet your specific operational requirements.

Our customization options include:

1.	Panel Box Material – Choose between stainless steel or iron for durability and protection.
2.	Controller Selection – Compatible with various dyeing machines, ensuring seamless integration.
3.	Circuit Customization– Design your electrical circuits using relays or PLCs for precise control and automation.
4.	User-Friendly Interface – Customize button layouts for efficient and intuitive operation in your production process.

With our expertise, you get a reliable, high-quality electrical panel that enhances efficiency and performance.

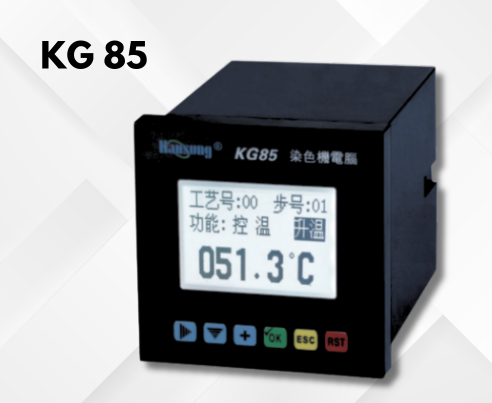

2. Hansung Controller KG 85

Our most basic controller, enabling automation for the heating and cooling process. Suitable for color matching machines.

Automatic Features:

1.	Heating
2.	Cooling

KG 85 Specifications:
• Monochrome display
• 7 Digital output
• 1 Analog output
• 1 Analog input
• 36 Programs process
• 70 Steps program process

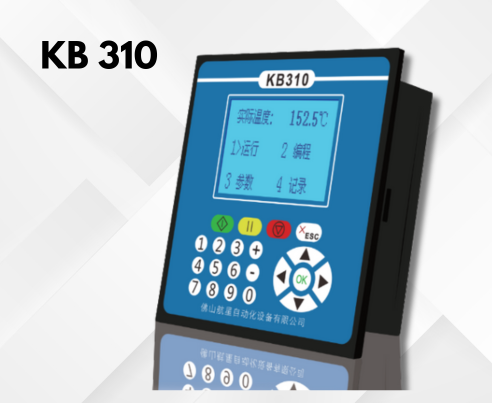

3. Hansung Controller KB 310

Simplified and reliable controller for production scale dyeing machines. Enabling automation for heating, cooling, pressure discharge, purging, main pump on/off process.

Automatic Features:

1.	Heating
2.	Cooling
3.	Purging
4.	Pressure discharge
5.	Main pump

KB 310 Specifications:
• Monochrome display
• 8 Digital output
• 2 Analog input
• 59 Programs process
• 99 Steps program process

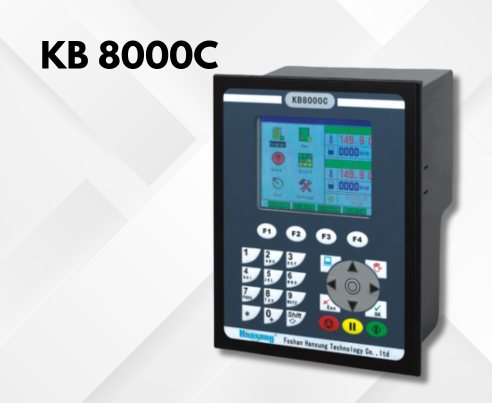

4. Hansung Controller KB 8000 C

Our flagship products for controllers, full colour, enabling full automation for dyeing processes. It comes with historical data features up to 30 dyeing processes that can be accessed directly from the controller.

Automatic Features:

1.	Heating
2.	Cooling
3.	Purging
4.	Fill main tank
5.	Drain main tank
6.	Fill adding tank
7.	Drain adding tank
8.	Mixer / circulation adding tank
9.	Overflow / rinse
10.	Washing
11.	Transfer (Adding tank to main tank)
12.	Return (Main tank to adding tank)
13.	Pressure discharge
14.	Pressure in
15.	Main pump

KB 8000 C Specifications:
• Colour display
• 24 Digital output
• 8 Digital input
• 4 Analog output
• 4 Analog input
• 1 Chanel pulse input
• Com interface RS485

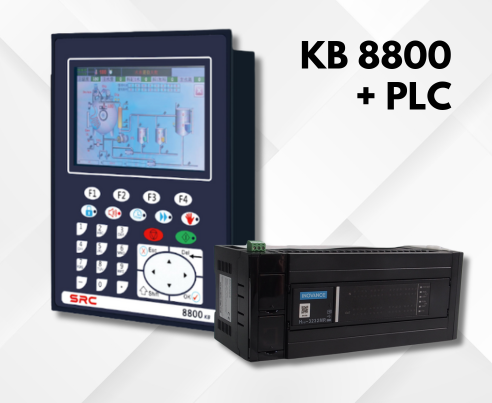

5. Hansung Controller KB 8800

Our latest development of dyeing controller, full color with machines schematic diagram. Enabling full automation for dyeing processes. Featuring parallel programming (two program steps at the same time). Only compatible with the PLC Program.

Automatic Features:

1.	Heating
2.	Cooling
3.	Purging
4.	Fill main tank
5.	Drain main tank
6.	Fill adding tank
7.	Drain adding tank
8.	Mixer / circulation adding tank
9.	Overflow / rinse
10.	Washing
11.	Transfer (Adding tank to main tank)
12.	Return (Main tank to adding tank)
13.	Pressure discharge
14.	Pressure in
15.	Main pump

KB 8800 Specification:
• Using IC ARM
• Full colour display (800 x 480 Resolution)
• Storage space 9999 and 400 steps program
• Temperature range 000°C~153°C
• Temperature control range 30°C~145°C
• Temperature gradient 0.1°C~9.9°C
• Temperature accuracy ± 0.5°C
• Dimension 216x270x116 mm³
• Hole dimension 183x237 mm²
• Input signal 8 tracks 3~20mA

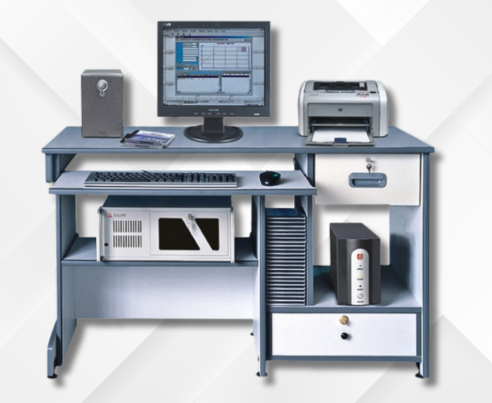

6. Centralized Control Management for Hansung's Controller

Dedicated both hardware and software for two-ways controlling devices between Hansung's controller and the control management.
Currently, only two types of Hansung controllers support centralized control management: the Hansung Controller KB 8000 C and the Hansung Controller KB 8800.

Advantages:

✔	Reduce losses - Caused by human error or other factors
✔	Automatic operation - Control cabinet switches are locked to prevent manual interference
✔	Real-time monitoring - Continuously monitors dyeing tanks, generating real-time curves that can be compared with theoretical curves
✔	Simultaneously - Multiple dyeing machines can be monitored and managed simultaneously
✔	Reports - Capabilities to print process curves and reports
✔	Quality & Production - Facilitating quality analysis and production management
✔	Easy and simple operation - Easy user interface and simple steps
