Automatic Winding Machine

Zhejiang Taihe Spinning Machine Co., Ltd. has been engaged in various manufacturing that spin and weave a machine and processes for a long time, having a strong aim at the service ability of the contingency that market needs for the customer. Our machines have been exported to over 20 countries worldwide, including Sri Lanka, Bangladesh, Thailand, Indonesia, Pakistan, Vietnam, India, Mexico, Tunisia, and more.

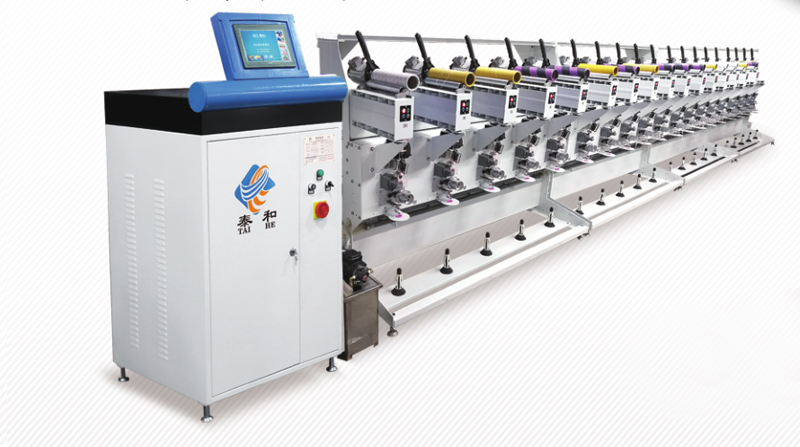

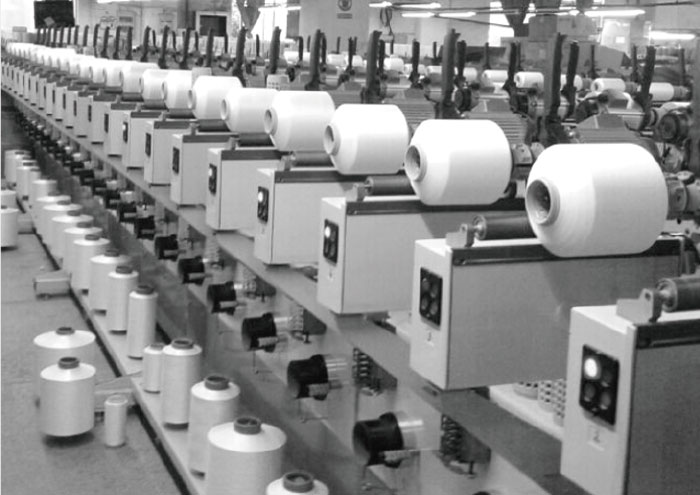

1. Cone to Cone Winding Machine

TH-11A

Push rod tension combined with BTSR online tension, and with oiling/wax device, makes yarn smoother, yarn tension more stable, perfectly meeting subsequent yarn process requirements.

Technical Parameter:

•	Type of winding: Precision winding / Electronic winding.
•	Mechanical speed: up to 1200m/min (process speed depends on process parameters).
•	Traverse length: 30-250mm infinitely variable.
•	Package diameter: 180mm – 200mm.
•	Package weight: up to 1.8kg (depends on yarn type).
•	Supply package diameter: up to 320mm.
•	Yarns: Textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns.
•	Installed power: 360W.
•	Power consumption: 80W.
•	Size (LxHxW): 1823x700x1550mm.

2. High-Speed Winding Machine

TH-15A/Y

This machine is suitable for many yarns, with a computer control system, electronic tension force, and oiling device, making this machine well-shaped and highly efficient.

•	Type of winding: Arranging winding.
•	Mechanical speed: up to 1200m/min (process speed depends on process parameters).
•	Take-up package diameter: up to 160mm.
•	Package weight: up to 1kg (depends on the thickness of the yarn).
•	Yarns: Sewing threads, embroidery thread, nylon.
•	Power consumption: 180W.
•	Single section size: 2010x887x1463mm.

3. Automatic Winding Machine

TH-21A/Y

TH-21A is a fully automatic cone winding machine with automatic tube replacement. Machine efficiency is highly improved, and it also reduces labor costs considerably. Equipped with an electronically controlled tuck-in device and a constant temperature oiling system, it ensures the yarn is wound perfectly.

•	Type of winding: Precision crosswind.
•	Mechanical speed: up to 1200m/min (process speed depends on process parameters).
•	Package shape: Cones.
•	Traverse length: 3-6 inch.
•	Yarns: Spun thread / core spun, textured filament, technical thread, special thread.
•	Power consumption: around 180W per spindle.
•	Single section size: 2285x1040x2300mm.

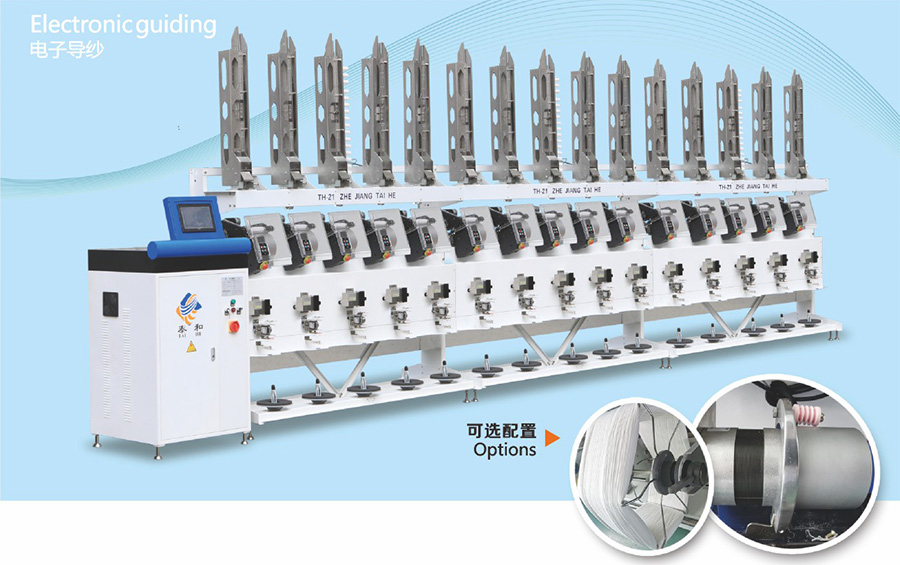

TH-21Y is an automatic sewing thread machine designed for King spool winding, offering top production performance worldwide. The machine is controlled by advanced technology – an electronic guiding system. It makes it easier to change crossing angle, traverse length, and take-up package.

•	Type of winding: Precision crosswind.
•	Mechanical speed: up to 1200m/min (process speed depends on process parameters).
•	Package shape: King spool.
•	Traverse length: 2.5-4 inch.
•	Yarns: Twisted filament, Silk thread, Rayon thread.
•	Power consumption: around 180W per spindle.
•	Single section size: 2285x1040x2685mm.

4. Automatic Winding Machine

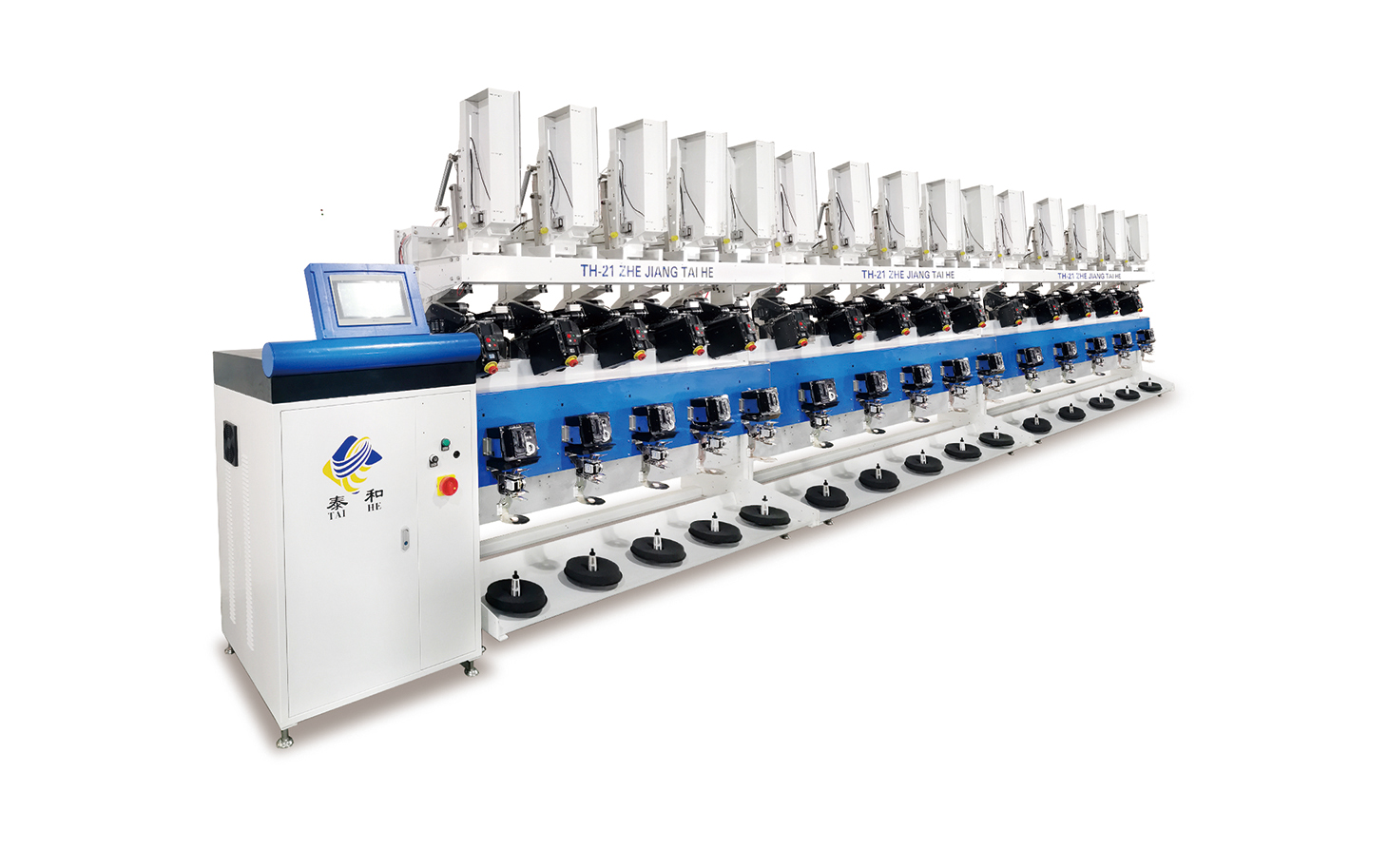

TH-21P

This machine is a special equipment for finger tube, designed to achieve automatic operation, improve production efficiency, and reduce labor intensity of workers. At the same time, it can flexibly adjust the number of patterns and density through recipe revisions. Digital constant temperature oiling maximizes yarn quality.

•	Type of winding: Precision winding / Electronic winding.
•	Mechanical speed: up to 1200m/min (process speed depends on process parameters).
•	Take-up bobbin: Finger tube, conical tube.
•	Traverse: 1.5 inch – 3.2 inch.
•	Yarns: Spun sewing thread, Polyester filament, Acrylic filament.
•	Power consumption per spindle: 180W.
•	Single section size: 2285x1040x2265mm.

5. Automatic Winding Machine

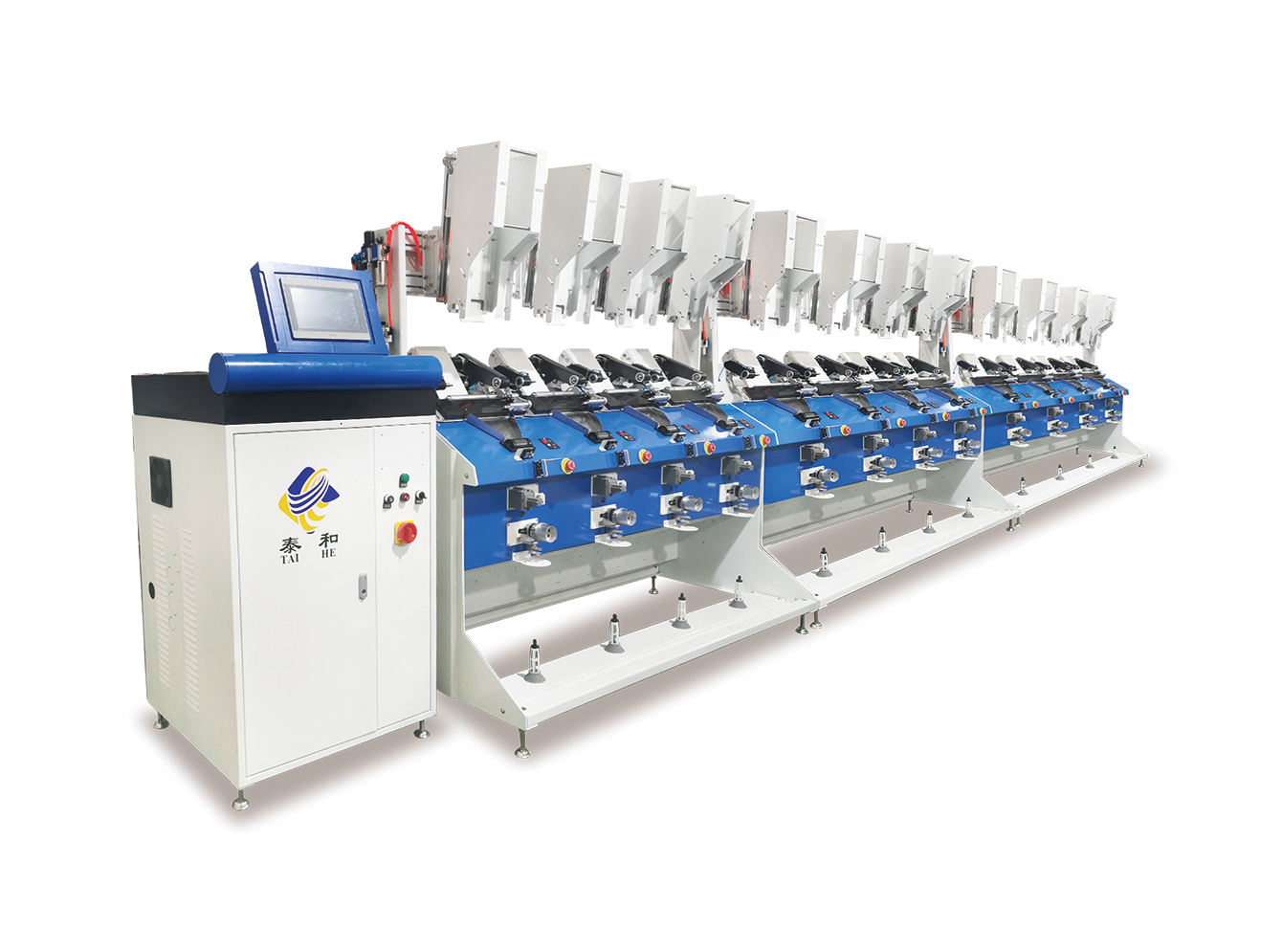

TH-23

On the basic of precision winding machine, equipped with auto doffing device, make machine operation fully automatic after bobbin finished. Highly improve the efficiency of machine. The existence of the central control system makes the auto doffing device run more stable and reliable.

•	Type of winding: Precision winding / Electronic winding.
•	Mechanical speed: up to 1200m/min (process speed depends on process parameters).
•	Package shape: Freely programmable.
•	Traverse: 155mm – 210mm.
•	Yarns: Polyester filament, Elastic yarn, Acrylic filament.
•	Power consumption per spindle: 500W.
•	Single section size: 2034x890x2080mm.
•	Take-up bobbin: 0°.

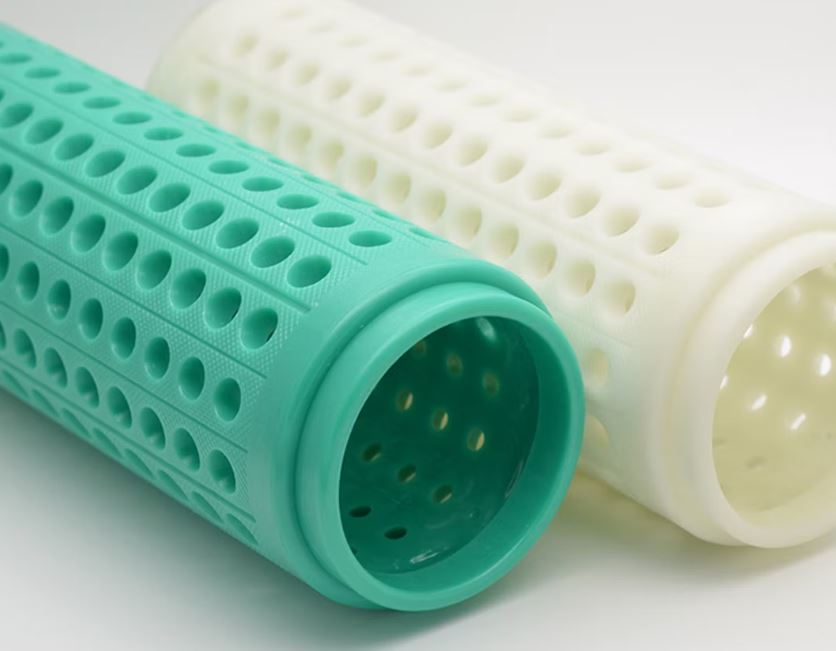

*Suitable for plastic bobbins.
