Hydroextractor & Grooved Drum Winder
Shanghai Deyi Machinery Manufacturing Co., Ltd., founded in 2004, is a professional manufacturer of industrial RF equipment, mainly producing various industrial RF equipment and other supporting equipment such as winder and hydroextractor used in the textile industry.

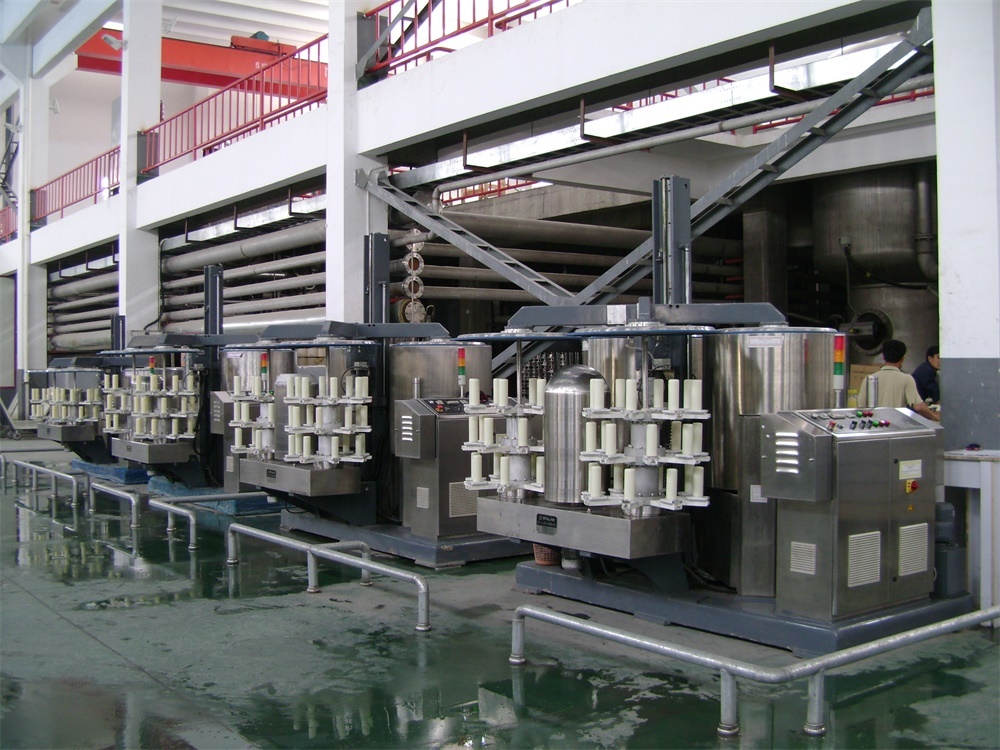

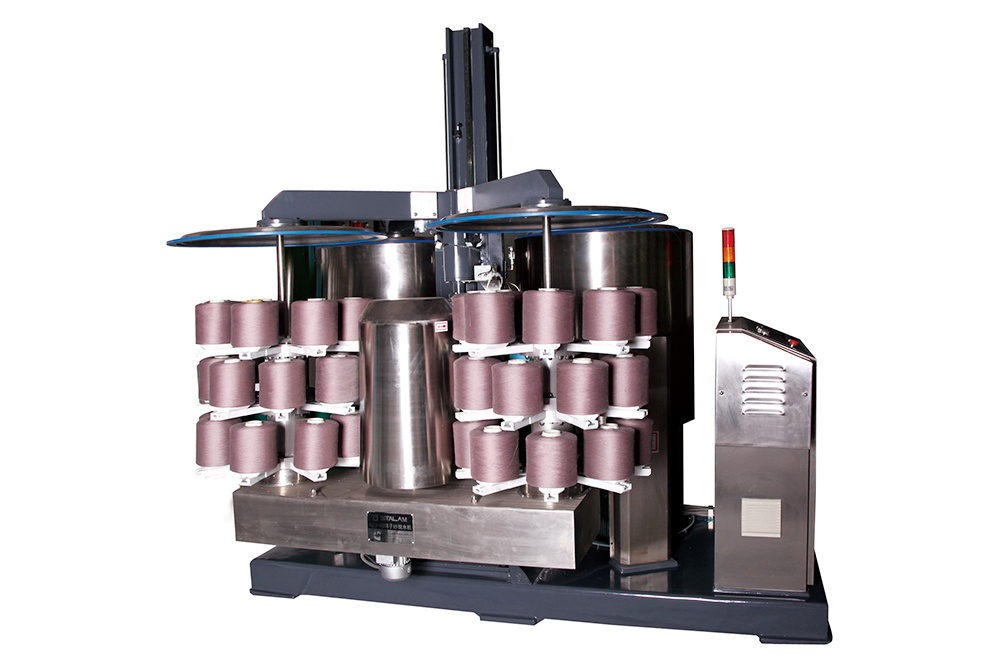

1. Yarn Package Hydroextractor
RZT type high-efficiency hydroextractor is uniquely designed for the hydroextraction process after package dyeing, and is suitable for the hydroextraction of packages of all cotton, chemical fiber, cashmere yarn.
Characteristics of RZT high-efficiency hydroextractor
Standard configuration
Characteristics of RZT high-efficiency hydroextractor
| • | The maximum speed is 1530 rpm, and the moisture content of cotton yarn after hydroextractor is 45%, which improves the production efficiency and saves the cost for the next process: drying. |
| • | The moisture content after hydro extraction is consistent to ensure the uniform moisture regain of the yarn before drying. Low overall running cost. |
| • | Each package has a separate fixed bracket, which will not damage the yarn and dye bobbin during hydro extraction. |
| • | Variable frequency speed regulation and stable speed increase and decrease. |
| • | The bearing for hydro extraction basket has an intelligent overtemperature protection system. |
Standard configuration
| • | Two hydro extraction baskets with suspension motor drives, shock absorbers, and balancing devices. |
| • | Four rotary yarn package carriers equipped with integral stainless-steel suspenders. |
| • | Hydraulic lifting and lowering yarn package carrier system and supporting oil pump. |
| • | PLC automatic control system is equipped with a stainless steel control cabinet. |
| • | Integral cast iron base. |
| • | Modern linear guide rail is used for the lifting slide. |

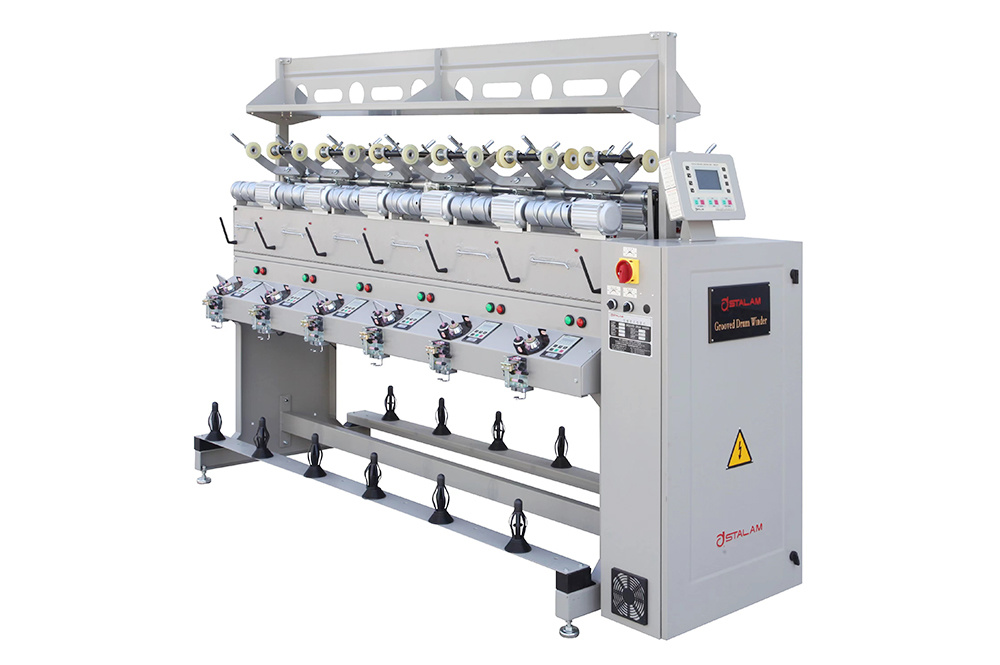

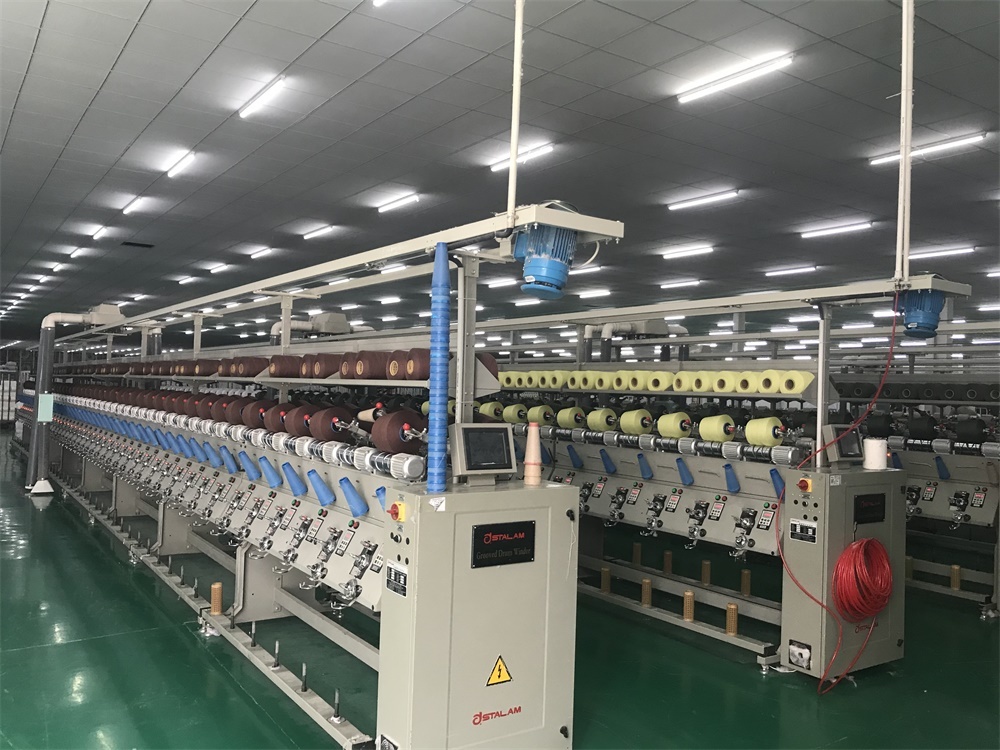

2. Grooved Drum Winder

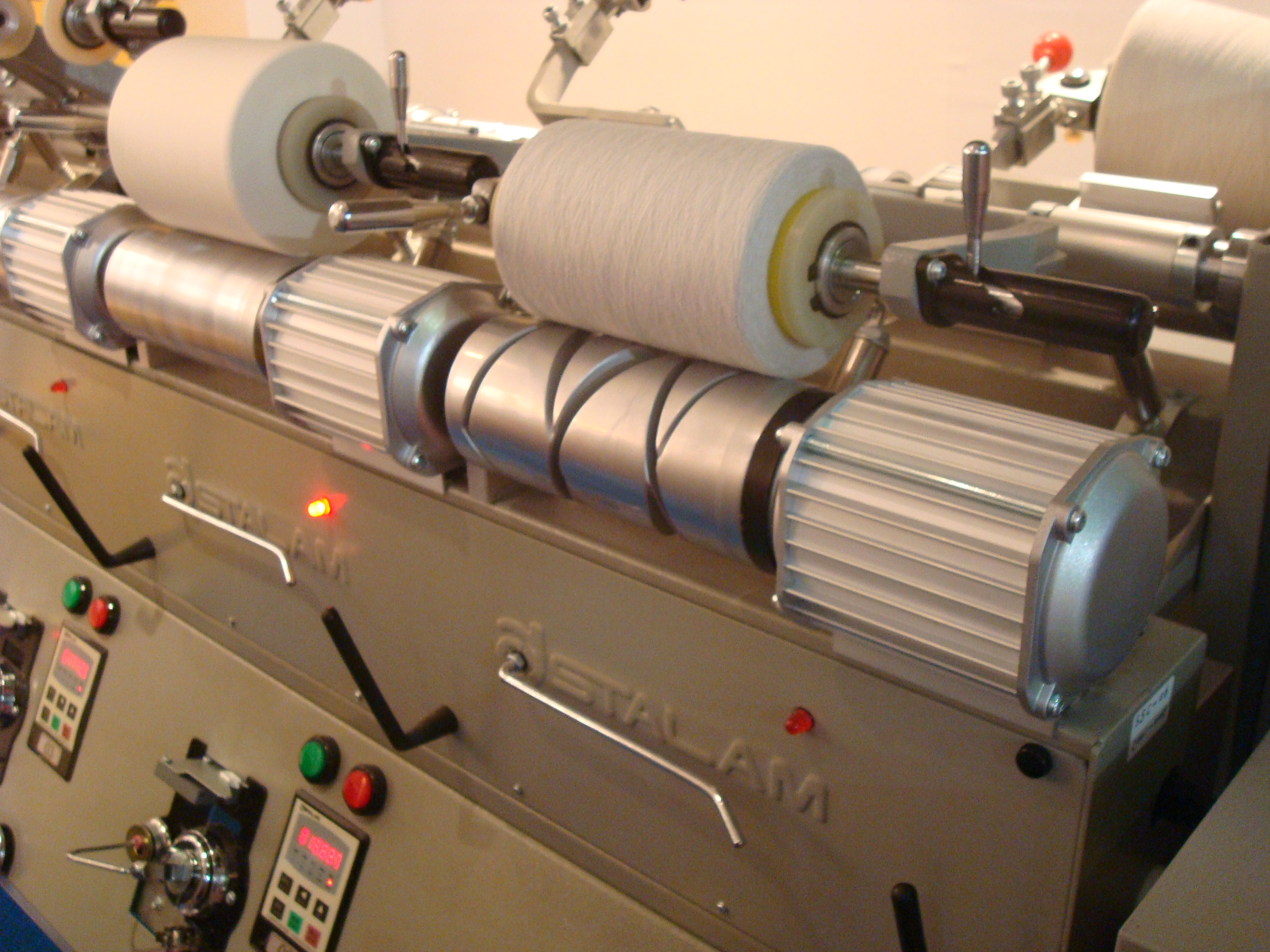

The grooved drum which is the core part of the machine is made of superplastic alloy material with modern molding and laser welding technology. It has the advantages of light weight, good groove shape, wear resistance, anti-stacking, and electrostatic removal.
The intelligent electrical control system adopts 485 communication technology and organically forms an intelligent system by using a liquid crystal touch screen, central microprocessor controller, unit controller of each spindle, starting and running frequency converter. It can accurately measure the length, detect yarn breakage, set the speed, and set the anti-stacking effect, making the winding process completely intelligent.
The main body of the machine is made of high-quality steel, and the outer surface is protected by solid and bright plastic spraying. Each section consists of 12 spindles, which can be installed in series by up to 10 sections so as to form a machine of 120 spindles. Therefore, it can be flexibly used in various plants.
In order to facilitate the higher-level requirements of users, the machine can be made with selective special configuration:
The intelligent electrical control system adopts 485 communication technology and organically forms an intelligent system by using a liquid crystal touch screen, central microprocessor controller, unit controller of each spindle, starting and running frequency converter. It can accurately measure the length, detect yarn breakage, set the speed, and set the anti-stacking effect, making the winding process completely intelligent.
The main body of the machine is made of high-quality steel, and the outer surface is protected by solid and bright plastic spraying. Each section consists of 12 spindles, which can be installed in series by up to 10 sections so as to form a machine of 120 spindles. Therefore, it can be flexibly used in various plants.
In order to facilitate the higher-level requirements of users, the machine can be made with selective special configuration:
| • | Blow and suction cleaning system. |
| • | Empty bobbin recollection and wound yarn package conveying transmission system. |
| • | Lighting LED light belt. |
